When your RV air conditioner quits on a sweltering day, it's easy to assume the worst. But before you start looking up the number for an expensive mobile tech, there are several key checks you can perform yourself. More often than not, the solution is surprisingly simple and doesn't require a service call.
Most issues come down to basic problems at the power source, breaker panel, or thermostat—steps any RVer can tackle with confidence. This guide will walk you through the diagnostic process, starting with the easiest fixes first.
Your First Checks for a Faulty RV AC
When an air conditioner won't even turn on, the problem is almost always electrical. The key is to trace the path of power from the campground pedestal all the way to your AC unit. A break anywhere in that chain will stop your AC in its tracks.
Start with the most common and easiest-to-fix culprits first. This diagnostic routine is the foundation of effective troubleshooting and will save you time, money, and frustration by ruling out the simple stuff before you even think about climbing onto the roof.
Start at the Power Source
Your troubleshooting journey begins outside the RV, right at the campground's power pedestal. This is where the 120V AC power your air conditioner needs to run its fan and compressor comes from. A bad connection here is a very common cause of power loss.
First, ensure your main shore power cord is plugged in securely. A plug that's been jostled loose can interrupt the connection. Next, check the breaker on the pedestal itself. It's common for these breakers to be accidentally switched off or to trip from a power surge.
Once you've confirmed the connection is solid and the pedestal breaker is on, give your cord a quick once-over. Look for any visible damage, like cuts or frayed wires, that could be interrupting the flow of electricity. If you use a surge protector—and you absolutely should—check its indicator lights to confirm it’s getting good, stable power.
Pro Tip: Never assume the campground pedestal is working correctly. If you've checked everything and still have no power, ask a neighbor if you can briefly plug into their pedestal. It’s a quick way to determine if the issue is with your rig or the campsite's wiring.
Check Your RV’s Circuit Breakers
With the external power source confirmed, head inside to your RV's main electrical panel. This panel is the central hub for all the 120V circuits in your rig, including a dedicated breaker just for the air conditioner.
An AC unit draws a significant amount of power, especially when its compressor first kicks on. Trying to run another high-wattage appliance at the same time, like a microwave or an electric water heater, can easily overload the circuit and trip the breaker.
Here's what to do:
- Locate the AC Breaker: It should be clearly labeled "AC" or "Air Conditioner."
- Identify a Tripped Breaker: A tripped breaker won't be fully "On" or "Off." It'll be stuck in the middle position.
- Reset the Breaker: To reset it, you must push the switch firmly all the way to the "Off" position first, then flip it back to "On."
If the breaker trips again immediately after resetting, you likely have a more serious issue that needs a closer look. However, a simple reset is often all it takes to get that cool air flowing again.
Diagnosing Poor Cooling Performance
If your AC is running but the air coming out is lukewarm, the problem is almost always restricted airflow. Your AC unit works by pulling warm, humid air from inside the RV, passing it over ice-cold coils, and then pushing that chilled air back into your living space. When something gets in the way of that airflow, the whole system can't keep up.
This is one of the most common complaints, and luckily, the culprits are usually things you can fix yourself in just a few minutes.

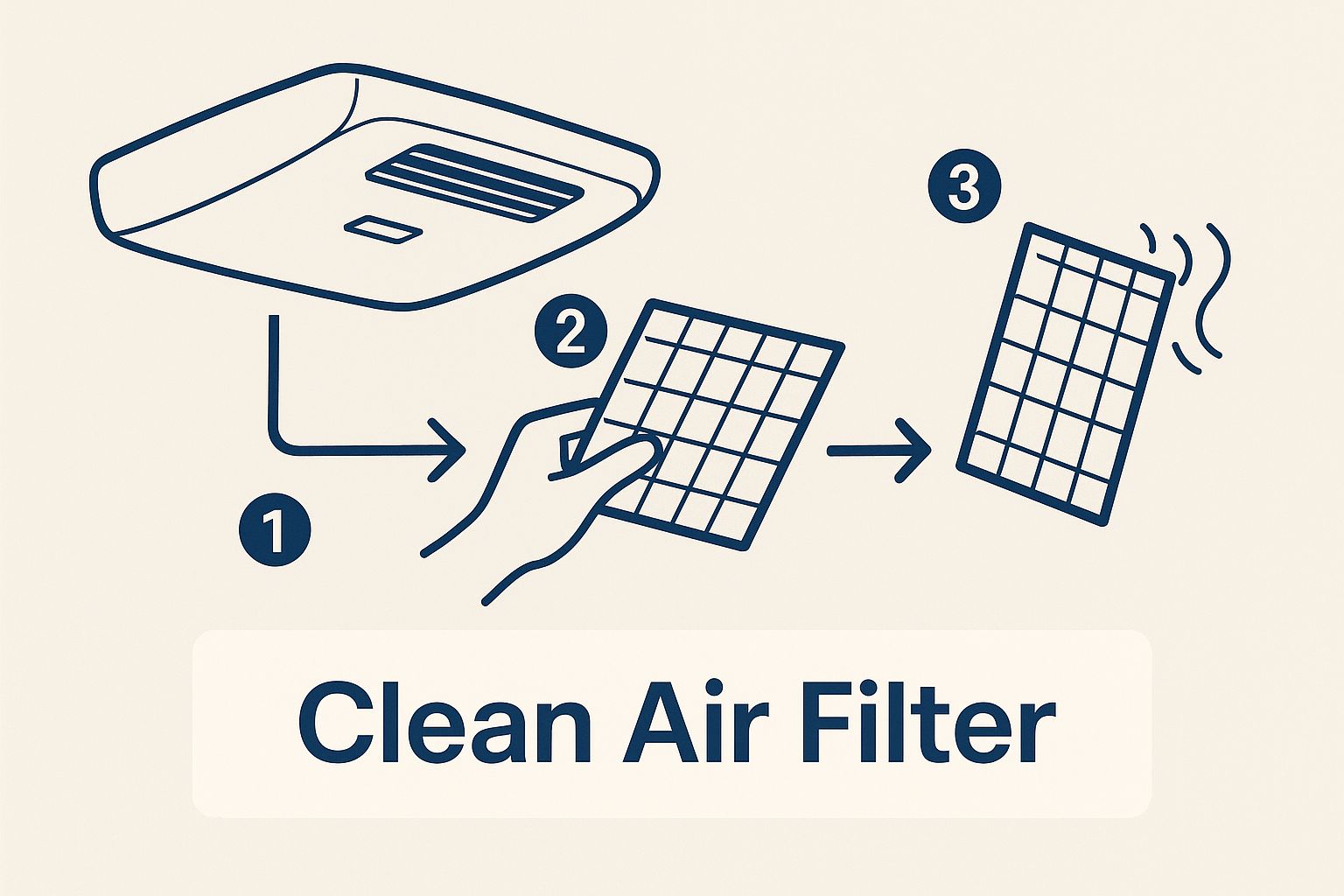

Start with the Air Filters
The absolute first place to look when your AC's cooling power takes a dive is the air filter. You'll find it on the interior ceiling assembly, and it’s your AC’s only defense against dust, pet dander, and pollen. As it does its job, it inevitably gets clogged, which chokes off the air supply. A dirty filter is the number one cause of poor AC performance.
A clogged filter forces the unit to work harder for worse results, can lead to the coils freezing up, and ultimately shortens the life of your air conditioner.
Key Takeaway: Get into the habit of checking your AC filters at least once a month. If you’re in a dusty location or travel with pets, you might need to check them every week. Most are reusable and can be washed with soap and water, but make sure they are completely dry before reinstalling.
Inspect and Clean the Coils
If your filters are clean but the air is still weak, it's time to check the evaporator and condenser coils. The evaporator coil is inside your rig (just behind the filter), and the condenser coil is up on the roof under the plastic shroud. Both can get caked with dirt, which acts like an insulating blanket and stops them from properly exchanging heat.
Evaporator Coils (Inside):
- Turn off all power to the AC at the breaker. Then, remove the ceiling cover and the filter.
- You can usually get most of the dust off with a soft brush attachment on a vacuum.
- For tougher buildup, use a can of commercial no-rinse coil cleaner. It's designed to foam up and dissolve the grime without damaging the delicate aluminum fins.
Condenser Coils (Outside):
- Get up on your roof safely and remove the AC shroud (it’s usually held on by a few screws).
- Clear away any leaves, twigs, or other debris that has collected around the unit.
- Use a soft brush or a gentle rinse with a hose to clean the fins. Do not use a pressure washer! It will bend the fragile fins and restrict airflow, creating a much bigger problem.
Check for Low Voltage Issues
Sometimes the problem isn't the AC unit, but the power going to it. Dirty filters or coils can slash cooling efficiency by up to 50%, but so can low voltage from the campground's power pedestal. You can read more about these common RV AC problems and their causes to see just how intertwined these issues can be.
On a hot weekend in a packed campground, the power grid can be strained, causing voltage to drop below the 120V your AC needs to run at full capacity. Your unit might still turn on, but the compressor won't have enough power to cool effectively. The best way to diagnose this is with a voltmeter or a surge protector that has a built-in voltage display. If you're consistently seeing numbers below 108V, your AC is struggling and at risk of damage. You may need to look into an autoformer to boost that power back up to a safe level.
Solving Constant On-and-Off Cycling
When your RV air conditioner starts kicking on for a minute, shutting off, then firing right back up again, you're dealing with a problem called short cycling. It’s more than just an annoyance; this rapid on-and-off behavior puts extreme strain on the compressor and can lead to a costly, premature failure.
Every time the compressor starts, it draws a massive surge of power. Short cycling forces it to do this over and over, which can quickly overheat and damage the motor windings and other critical components.
Uncovering the Root Causes of Short Cycling
The most common culprit behind short cycling is a frozen evaporator coil. This happens for one of two reasons: restricted airflow from a dirty filter or high humidity inside your rig. When that moist air hits the ice-cold coils, the condensation turns to a solid block of ice, choking off airflow and forcing the unit to shut down.
Short cycling can also point to electrical issues. A faulty thermostat might be sending incorrect temperature signals, telling the AC to shut down too early. Or, a failing start capacitor may not be providing the consistent electrical jolt the compressor needs to stay running.
Expert Insight: Don't forget to check the thermostat's location. If a ceiling vent is blowing cold air directly onto it, the thermostat will get a false reading that the room is cool and shut the system off prematurely. This is a simple but surprisingly common cause of short cycling.
Diagnosing and Fixing the Cycle
Your first move is to check for ice. Power down the AC and remove the interior ceiling cover. If you see frost or a block of ice on the evaporator coils, you've found the immediate problem. The next step is to figure out why it froze.
Quick Fixes for RV AC Short Cycling
Use this table to quickly identify and address the common causes of an air conditioner that frequently turns on and off.
| Symptom | Likely Cause | DIY Solution |
|---|---|---|
| Visible ice/frost on coils | Restricted airflow | Turn AC to "Fan Only" on high for 30-60 mins to defrost. Clean or replace the air filter. |
| Icing on humid or rainy days | High interior humidity | Run a dehumidifier to pull excess moisture from the air, preventing ice formation on the coils. |
| No ice, but AC still cycles | Thermostat placement | Check if an AC vent is blowing directly onto the thermostat. If so, redirect the vent louvers away from it. |
| No ice, AC clicks but won't stay on | Failing capacitor | Use a multimeter to test the capacitor. It should read within +/- 10% of its rated microfarad (µF) value. Replace if out of spec. |
If you’ve found ice, the fix is straightforward:
- Defrost the Coils: Switch the AC to "Fan Only" mode and set it to high for 30-60 minutes. This circulates room-temperature air over the coils and melts the ice safely.
- Manage Interior Humidity: On damp, rainy days, the humidity inside your RV can skyrocket. Running a dehumidifier makes a huge difference by pulling that moisture out of the air before it can freeze on your coils.
If you've ruled out ice, shift your focus to the electrical components. Check the thermostat location first. If that’s not it, the start capacitor is the next logical suspect. You’ll need a multimeter with a capacitance setting to test it, but it’s a quick check that can save you a lot of guesswork.
While a frozen coil is the most common cause, the problem can sometimes go deeper, pointing to a bad thermostat, a failing control board, or a weak capacitor. For a more detailed guide on these issues, you can find more RV troubleshooting details on Roadtrippers.com.
How to Fix Water Leaks From Your AC Unit
Few things are more alarming for an RVer than a water drip forming on the interior AC cover. This problem demands immediate attention to prevent stained ceilings, warped wood, and other expensive interior damage.
Luckily, most leaks are caused by simple issues you can fix yourself. The key is to work through the potential culprits logically, starting with the easiest and most common problems first.
Check for Clogged Drains
Your RV air conditioner is a powerful dehumidifier, pulling significant moisture out of the air. This water collects in a drain pan and is supposed to drain harmlessly onto your roof. But if the drainage system gets clogged, that water has nowhere to go but inside.
- Inspect the Drain Pan: With all power off, remove the interior ceiling cover. Look for standing water in the pan. Often, dirt, leaves, and other debris have built up and are blocking the small drain holes.
- Clear the Drain Holes: A simple zip-tie or a piece of flexible wire is perfect for this task. Gently poke it through the drain holes to clear any blockages. This often resolves the leak immediately.
Revisit Frozen Evaporator Coils
As mentioned before, restricted airflow can cause your evaporator coils to freeze into a solid block of ice. When that ice eventually melts, it can release a sudden gush of water that overwhelms the drain pan, causing it to overflow directly into your RV.
If you suspect a freeze-up caused your leak, the fix is all about improving airflow. Ensure your air filters are spotless and that all your interior vents are open and unobstructed.
Inspect the Rooftop Gasket and Bolts
If the leak only appears after a rainstorm, the issue isn't condensation from the AC but rainwater getting in from outside. The culprit here is almost always the thick foam gasket that creates a seal between the AC unit and your RV's roof.
Water leaks from an RV air conditioner often trace back to drainage problems or an improper seal. These issues can lead to interior water damage that easily exceeds $1,000 to repair. Besides clogged drain pans, loose mounting bolts or a degraded gasket can allow water to seep in during rain. You can discover more insights about RV air conditioner leaks on RVshare.com.
My Pro Tip: The mounting bolts that compress this gasket are accessed from inside your RV, not from the roof. You'll find them after you remove the interior ceiling assembly.
To check the seal:
- Locate the Mounting Bolts: There are typically four, one in each corner of the AC unit's base plate inside.
- Check for Tightness: Use a socket wrench to gently check if the bolts are loose. The keyword here is gently—you absolutely do not want to overtighten them.
- Tighten in a Star Pattern: If they need tightening, turn each bolt just a half-turn at a time in a crisscross pattern, like you would with lug nuts on a tire. This ensures even pressure. The goal is to compress the gasket by about 50% of its original thickness. Squishing it too much will ruin the seal just as effectively as leaving it too loose.
A properly tightened set of bolts will create a watertight seal that keeps your RV dry, no matter how hard it rains.
Knowing When to Call an RV Technician
While it's empowering to tackle most common RV AC problems, knowing your own limits is crucial. Some issues require the specialized knowledge and equipment of a professional.
Recognizing these red flags will save you time, keep you safe, and prevent a small problem from turning into a major expense. Diving into complex electrical or sealed refrigerant systems can be dangerous and could easily void your warranty. If you've run through all the troubleshooting steps and are still stumped, or if you spot any of the symptoms below, it's time to call a professional.
Clear Signs You Need a Professional
Certain symptoms are immediate stop signs for DIY work. These problems involve the core, high-stakes components of your AC system and carry real risks if you don't know exactly what you're doing.
Here are the definitive signs that you should call a certified RV technician right away:
- Any Smell of Burning Wires: An acrid, electrical burning smell is a huge red flag for a serious short or an overheating component. Kill all power to the AC at the breaker immediately and do not turn it back on.
- Oily Residue on Coils: An oily film on or around the evaporator or condenser coils is a classic sign of a refrigerant leak. Refrigerant is a hazardous substance, and the system is sealed under high pressure. This requires special equipment and certification to handle safely.
- Compressor Hums But Won't Start: You can hear a distinct humming or buzzing from the rooftop unit, but the compressor never actually kicks in. If you've already tested the start capacitor and it's good, the compressor motor itself has likely failed. This is a major repair that is not a DIY job.
- Repeated Breaker Trips with No Obvious Cause: The AC breaker trips immediately every time you turn it on. If you've ruled out other appliances on the circuit, you're likely dealing with a dead short inside the AC's wiring or a major component failure.
My Advice: When you call for service, be prepared to give the technician a clear summary. Tell them exactly what the AC is doing (or not doing), any sounds it’s making, and the troubleshooting steps you’ve already taken. This information helps them diagnose the problem faster, which can save you money on labor costs.
Finding a good mobile RV tech can be a lifesaver on the road. Look for certified technicians with solid online reviews and don't hesitate to ask for their credentials. A skilled technician will have the right diagnostic tools to pinpoint the exact problem and get the job done right.
Your Top RV Air Conditioner Questions Answered
Even after fixing the main issue, some practical questions always come up. Here are answers to the most common ones, focusing on best practices that will prevent future problems.
Adopting a proactive maintenance routine, instead of just fixing things when they break, will make a huge difference in your AC's lifespan and performance.
How Often Should I Clean My RV AC Filters?
This is the single most important maintenance task for your AC. A clean filter is essential for good performance. As a general rule, check your filters at least once a month.
However, your travel style dictates the real schedule:
- Dusty Environments: If you're camping in dry, dusty locations like the desert Southwest, check the filters weekly.
- Traveling with Pets: Pet fur and dander can clog a filter very quickly. If you have a furry co-pilot, a weekly check is a must.
Most filters can be washed with warm, soapy water. Just make sure they are completely dry before you reinstall them to prevent mold growth.
Can I Run My RV AC on a Standard Household Outlet?
The short answer is: no, you shouldn't. While you can find an adapter to plug your 30-amp RV into a standard 15/20-amp household outlet, that circuit cannot supply the steady power an air conditioner's compressor needs.
Attempting to run the AC this way causes a significant voltage drop, which puts extreme strain on the compressor. It will overheat and suffer permanent damage. It might seem to work for a short time, but you are risking a very expensive repair. Your AC needs the full power from a proper 30 or 50-amp service to run safely.
Running your RV AC on a standard home outlet is like trying to run a marathon on a starvation diet. The system is being starved of the power it needs to function, leading to inevitable component failure.
Why Is It Better to Start the Fan Before the Compressor?
This is an excellent pro tip, especially at a campground with older wiring or on a hot afternoon when every AC is running. When you switch the thermostat directly to "Cool," the system tries to start the fan motor and the power-hungry compressor simultaneously. This creates a massive initial power surge.
By switching your AC to "Fan Only" for a minute before you switch to "Cool," you stagger that startup. The fan gets spinning first, and then the compressor kicks on. This simple habit dramatically reduces the initial power spike, which is much easier on your compressor, its starting components, and the campground's electrical grid.
What's the Best Way to Improve AC Efficiency?
Your AC unit shouldn't have to fight the heat alone. You can significantly boost its efficiency by reducing the heat load inside your RV.
- Use Reflective Window Covers: A huge amount of heat enters your RV through the windows. Reflective, bubble-style insulation covers are extremely effective at blocking solar gain.
- Park in the Shade: This seems obvious, but it makes a massive difference. Whenever possible, choose a campsite that offers afternoon shade, especially on the side of your RV with the most windows.
- Ventilate Before Cooling: If your RV has been locked up and baking in the sun, don't just turn on the AC. First, open the windows and run your roof vent fans for a few minutes to exhaust the super-heated air before asking your AC to start cooling.
These practical steps help your air conditioner work smarter, not harder. You'll stay cooler and use less power.
